Metal Hood & Housing Housings. cable to cable.high construction H24B-CCTH-2L-M32/M40/PG21/PG29

The current position is：Home >Products >Hood/Housing Series >24B Metal Hood/Housing Series

Product description

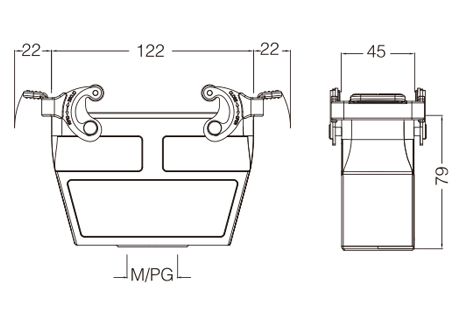

	H24B-CCTH-2L-M32/M40/PG21/PG29
	COLUMN：Hood & Housing series/24B Metal Hood & Housing
	POSITION：Housings
	PRODUCT MODEL：H24B-CCTH-2L-M32/M40/PG21/PG29
	ORDER NUMBER：19300240737
	PRODUCT CERTIFICATION：CQC CE ROHS

产品参数

表面处理	Surface	Epoxy power paint/Chromated/nickeling
材料	Material	zinc die-cast
颜色	Colour	Grey
联锁元件	Locking element
---联锁方式	-Lever type	Lever
---材料	-Material	Metal Galvanized/nickel plating
密封元件	Hoods & Housings seal	NBR
适用温度范围	Limiting temperatures	-40℃...+125℃
阻燃等级	Flammability acc. to UL 94	V0
防护等级	Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65

Data download

H24B-CCTH-2L-M32/M40/PG21/PG29
