Combination inserts Axial Screw Terminal HK-008/0-F

The current position is：Home >Products >Insert Series >HK Series / Combination Connector

Product description

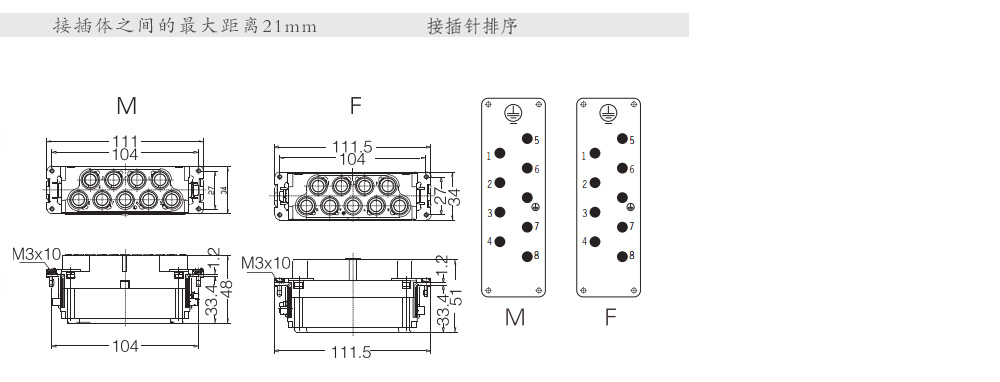

	HK-008/0-F
	COLUMN：HK SERIES/Combination connecto
	POSITION：Female Inserts
	PRODUCT MODEL：HK-008/0-F
	ORDER NUMBER：09380082753
	PRODUCT CERTIFICATION：CQC CE ROHS

插芯Inserts		Hoods/Housing：matching 24B Housing
接插件针数	Number Of Contacts	8/0+PE
－额定电流	－Rated Current	100A
－相对额定电压	－Rated Voltage	690V
－相间额定电压
－额定脉冲电压	－Rated Impulse Voltage	8KV
－污染程度	－Pollution Degree	3
－或	－Or
－依据UL/CSA额定电压	－Rated Voltage Acc.to Ul CSA	600V
绝缘电阻	Insulation Resistance	≥10¹⁰Ω
材料	Material	Polycarbonate
工作温度范围	Limiting Temperatures	-40℃...+125℃
依据UL94阻燃等级	Flammability Acc. To UL94	V0
可拔插次数	MecHEnical Working Life-mating Cycles	≥500
插针
材料	Material	Copper Alloy
表面处理	Surface	Silver plated/Gold plated
接触电阻	Contact Resistance	≤0.5mΩ
冷压连接
－导线规格	Wire Gauge	10-25mm2
－AWG	AWG	7-3
－拧紧力矩	Tightening Torque

Hoods/Housing：>>24B Housing<<
