Product description

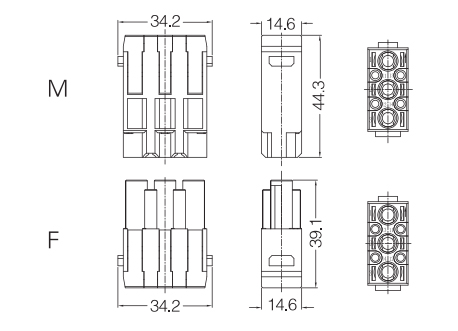

	HMK-003/4-MC
	COLUMN：HM SERIES / Hinged Frames
	POSITION：Male Inserts
	PRODUCT MODEL：HMK-003/4-MC
	ORDER NUMBER：09140073001
	PRODUCT CERTIFICATION：CQC CE ROHS

插芯Inserts		Hoods/Housing：matching Housing
接插件针数	Number Of Contacts	3
－额定电流	－Rated Current	10A
－相对额定电压	－Rated Voltage	830V
－相间额定电压
－额定脉冲电压	－Rated Impulse Voltage	8KV
－污染程度	－Pollution Degree	3
－或	－Or
－依据UL/CSA额定电压	－Rated Voltage Acc.to Ul CSA	600V
绝缘电阻	Insulation Resistance	≥10¹⁰Ω
材料	Material	Polycarbonate
工作温度范围	Limiting Temperatures	-40℃...+125℃
依据UL94阻燃等级	Flammability Acc. To UL94	V0
可拔插次数	MecHEnical Working Life-mating Cycles	≥500
插针
材料	Material	Copper Alloy
表面处理	Surface	Silver plated/Gold plated
接触电阻	Contact Resistance	≤3mΩ
冷压连接
－导线规格	Wire Gauge	1.5-6mm2
－AWG	AWG	16-10
－拧紧力矩	Tightening Torque
