Plastic Hood & Housing Hoods. side entry H3A.P-SE-2B-M20/PG11

The current position is：Home >Products >Hood/Housing Series >3A Metal Hood/Housing Series

Product description

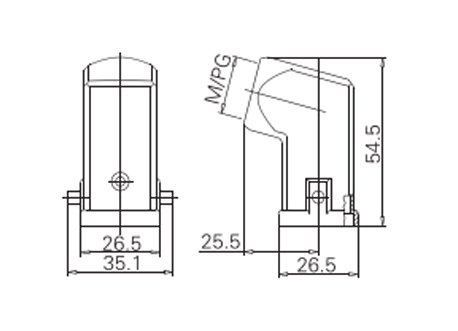

	H3A.P-SE-2B-M20/PG11
	COLUMN：Hood & Housing series/3A Plastic?Hood & Housing
	POSITION：Hoods
	PRODUCT MODEL：H3A.P-SE-2B-M20/PG11
	ORDER NUMBER：19200030620
	PRODUCT CERTIFICATION：CQC CE ROHS

产品参数

材料	Material	Polycarbonate
颜色	Colour	Grey
联锁元件	Locking element
---联锁方式	-Lever type	Lever.plastic
---材料	-Material	Metal Galvanized/nickel plating
密封元件	Hoods & Housings seal	NBR
适用温度范围	Limiting temperatures	-40℃...+125℃
阻燃等级	Flammability acc. to UL 94	V0
防护等级	Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65
